3 polegadas Figura 1502 Largo Kit de Reparação de articulações giratórias O Anel Selo de borracha 80 Shore A

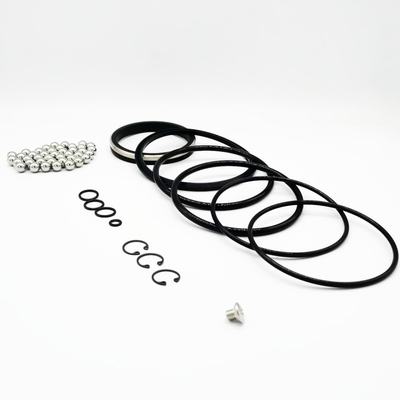

3-Inch Figure 1502 Wide-Style Swivel Joint Seal Repair Kit

3-Inch Wide-Style Swivel Seals: Check Profile and Hardness Before Replacement

The 3-inch dimension identifies the swivel joint reference, not the diameter of each replacement ring. Match the wide-style construction and individual seal dimensions; a narrow-style set or a kit for another joint size must be reviewed separately.

Follow the swivel joint manufacturer’s inspection, lubrication, assembly and post-repair procedure. The seal set has no independent pressure rating. Sour-gas or rapid gas decompression duty needs compound-specific qualification. Our ISO 9001 quality management supports agreed specification review and inspection.

Swivel joint seals and O-rings — confirm exact profiles and kit contents

This enquiry covers replacement seals and O-rings for a matching 3-inch Figure 1502 wide-style swivel joint. Confirm the joint manufacturer, model and seal profiles against the approved component drawing. NBR, HNBR and FKM are alternative compound families; agree the grade and service conditions for each required part.

Specify O-ring hardness in Shore A with the target tolerance and compound code.

=>Customization is also available for customers that require non-standard compounds, additional or customer specific metal or other non-rubber parts.

Custom labels can identify the kit code, tool reference, drawing revision, compound and hardness; agree the required fields before packing.

Related wireline kits — separate from this swivel joint seal set:

• #10 setting tool - With burst disk

• #20 setting tool - With burst disk

• AP Compact Setting Tool Kit

• Grease Tubes Seal Kit

• 3 1/2” Shorty Kits

• 3 - 1/8" Weight Bar Kit

• #10 Baker Firing Head Kit

• #20 Firing Head Kit

• #20 BP3.SEC kits

• #10 BP3.SEC kits

• T-BRT redress kit

• T-1 Set

• GC Stripper Head Redress Kits

Note: Confirm whether the specified kit includes a bleeder disc. Any disc must follow the original tool part specification; no pressure-relief setting is established by this kit listing.

Related Wireline Component References — Not the Swivel Kit Contents:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut  (application:5" port plug)

6) Threaded Brass Plug  (application: setting tool plug )

SHQN Other relevant products

Oilfield Plug Valve Seals

products data sheet

Hammer union seals:

Hammer Union Seals are used in hammer union-style pipe connections to establish flow lines and prevent leakage.

Available size : 1", 2", 3", 4" and 5"

Related hammer union seal enquiries include NBR, HNBR, FKM or PTFE with backing construction matched to the union drawing. HNBR alone does not establish sour-gas suitability; confirm the exact compound and qualification for the fluid, temperature and gas conditions.

Swab cups:

Related swab cups are ordered separately from this 3-inch Figure 1502 wide-style swivel joint seal kit. During fluid recovery, a selected cup seals against the tubing or casing bore. Specify the cup profile, tubing inside diameter, mandrel bore, core arrangement and compound for the actual fluid exposure and permitted fluid-column load. Confirm the selected cup and mandrel operating limits before use.

MV Style, TA style, TUF style, NUF style and V styles.

Rubber o rings or kits

For related AS568 O-rings, specify the dash number, compound and hardness; confirm tooling and availability for the requested size.

Color, hardness, packing all can be custom making.
